01 Suitable for a Wide Range of Materials

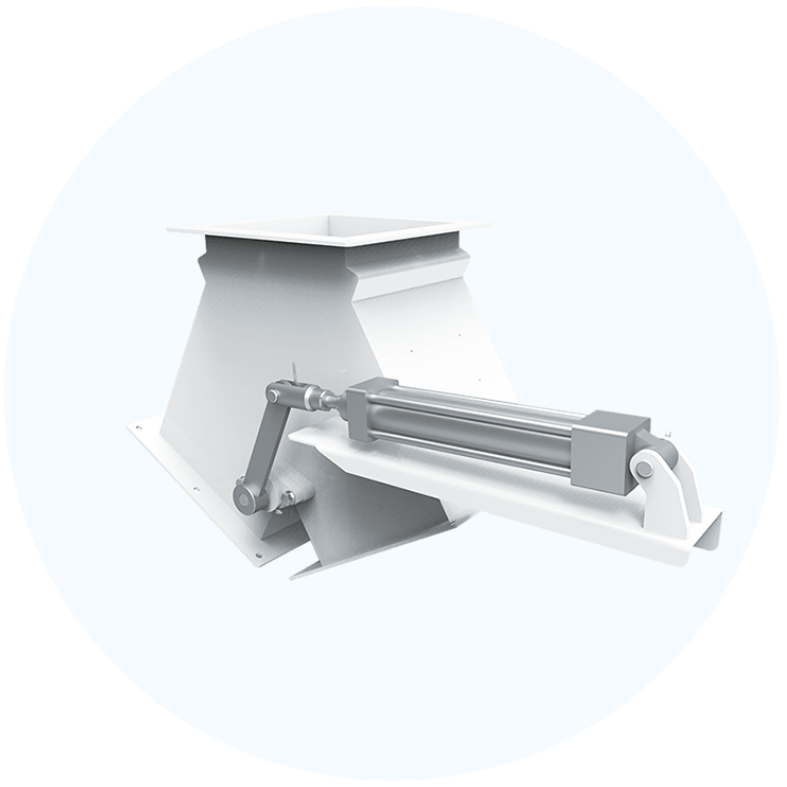

Flap Three-Way Distributors: Suitable for powdered materials, with excellent sealing performance.Diverting Hopper Three-Way Distributors: Suitable for granular materials, with strong abrasion resistance and long service life.
02 Broad Application Scenarios
Pneumatic Three-Way Distributors: Ideal for indoor environments with a shared air supply, stable air pressure, and convenient layout.Electric Three-Way Distributors: Suitable for outdoor environments where power supply is convenient, avoiding issues of pressure drop.
03 Excellent Universality
The three-way distributors have two optional connections: flange and flange beading, compatible with various chute pipes and interface flanges;Overall sizes range from 20 to 40, providing comprehensive coverage and strong universality;Angles include 30° and 45°, facilitating process layout.
Gate positioning control employs a travel switch for accuracy and reliability;Switch brands: standard domestic, with Honeywell as an option.
05 Structurally Stable and Reliable
The ends of the rotating shaft are positioned by bearings to ensure no axial movement and leakage, with bearing options available based on requirements; cylinder brands are also selectable, with a domestic brand as the standard and SMC and FESTO as options;
a double-coil solenoid valve ensures the gate remains in position after power loss, with the brand matching the cylinder brand; the three-way distributors comes with a junction box, and wiring is completed in the workshop, requiring only on-site connection of the junction box.
