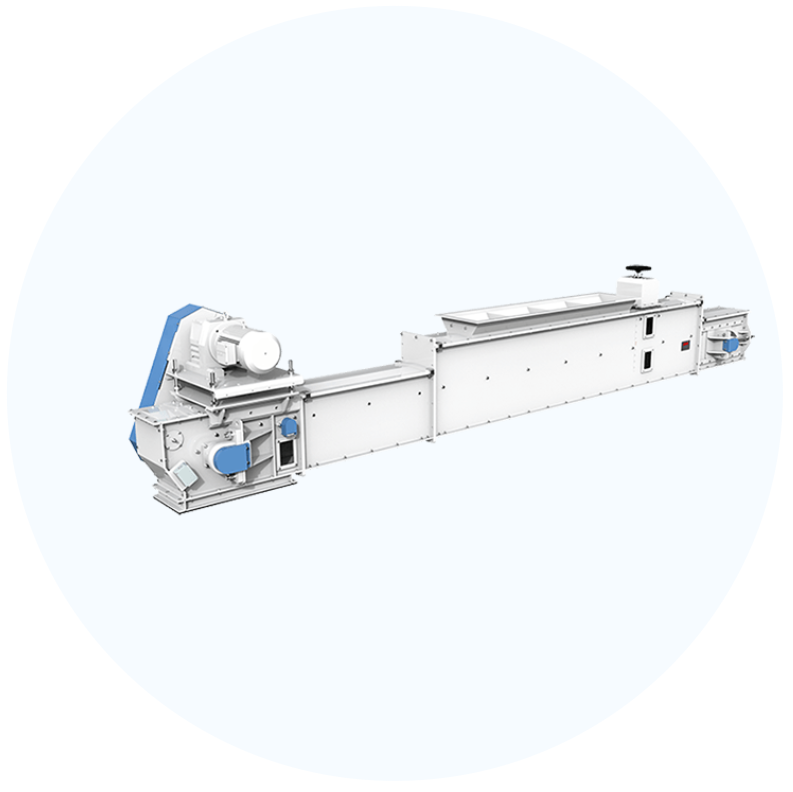

TGSP chain conveyor is primarily used for conveying dry, powdered, or granular materials in the feed industry, but is not suitable for transporting brittle granular materials requiring low breakage rates. It features a simple structure, small size, excellent sealing performance, and and is relatively convenient for installation and maintenance. It allows for multi-point feeding and discharging, offering flexible process selection and layout.

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description

01 High Capacity and Stable Structure

Available in a full range of specifications, with a large effective volume of the body and stable operation. It comes with three plate thickness configurations to suit different working conditions.

02 Comprehensive Safety Features

Equipped with standard anti-clogging features and optional speed measurement and anti-chain-breaking devices, all from leading brands, ensuring reliability and stability.

03 Human-Machine Safety and Easy Maintenance

Fully enclosed chain drive and coupling guards, which are modular and detachable, with an oil fill port on the chain drive guard.
The bearings at the head and tail ends are integrated with the bearing housing, providing stability, durability, and ease of maintenance.
The rotating parts at the head and tail ends are equipped with sealed guards to prevent fingers from being inserted, ensuring safety.
The conveyor sprocket is standard with an integral design, sturdy and wear-resistant, with an optional split design for easy disassembly and maintenance.
The shaft end seal is standard with a packed seal made of PTFE for good sealing performance, with an optional dedicated air seal suitable for premixed materials and fine powders.

04 Clean and Hygienic

All chains are equipped with flexible cleaning scraper blades to ensure the trough is clean.
Multi-outlet configurations are equipped with “self-cleaning gates" and "chain cleaning brushes" to significantly reduce residue and material leakage at intermediate outlets.
