Multi Purpose – always Suitable

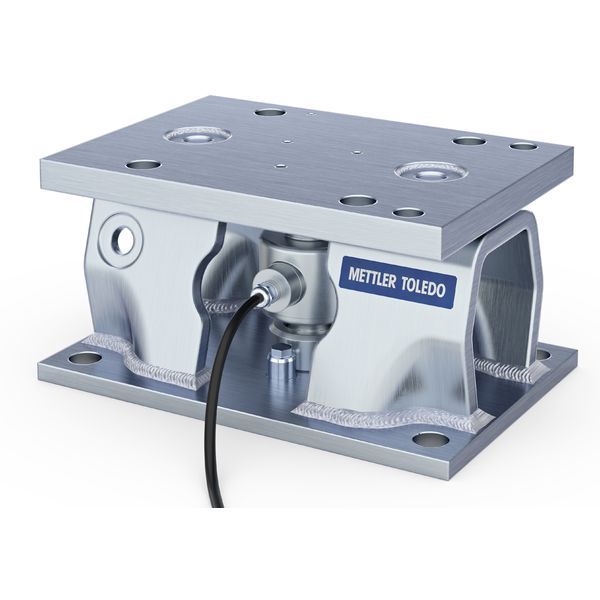

For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
No Compromise on Safety
Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells bring peace of mind.
Right the First Time
Fast and straightforward installation w/o damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack
| Maximum Capacity | 16,500 lb (7,500 kg) |
| Material | Zinc plated steel |
| Metrology | NTEP III 5,000d OIML C3 |
| Load Cell | 12 m cable SLC611 |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX FM |
| Criticality | Standard |
