Product: String Inverter

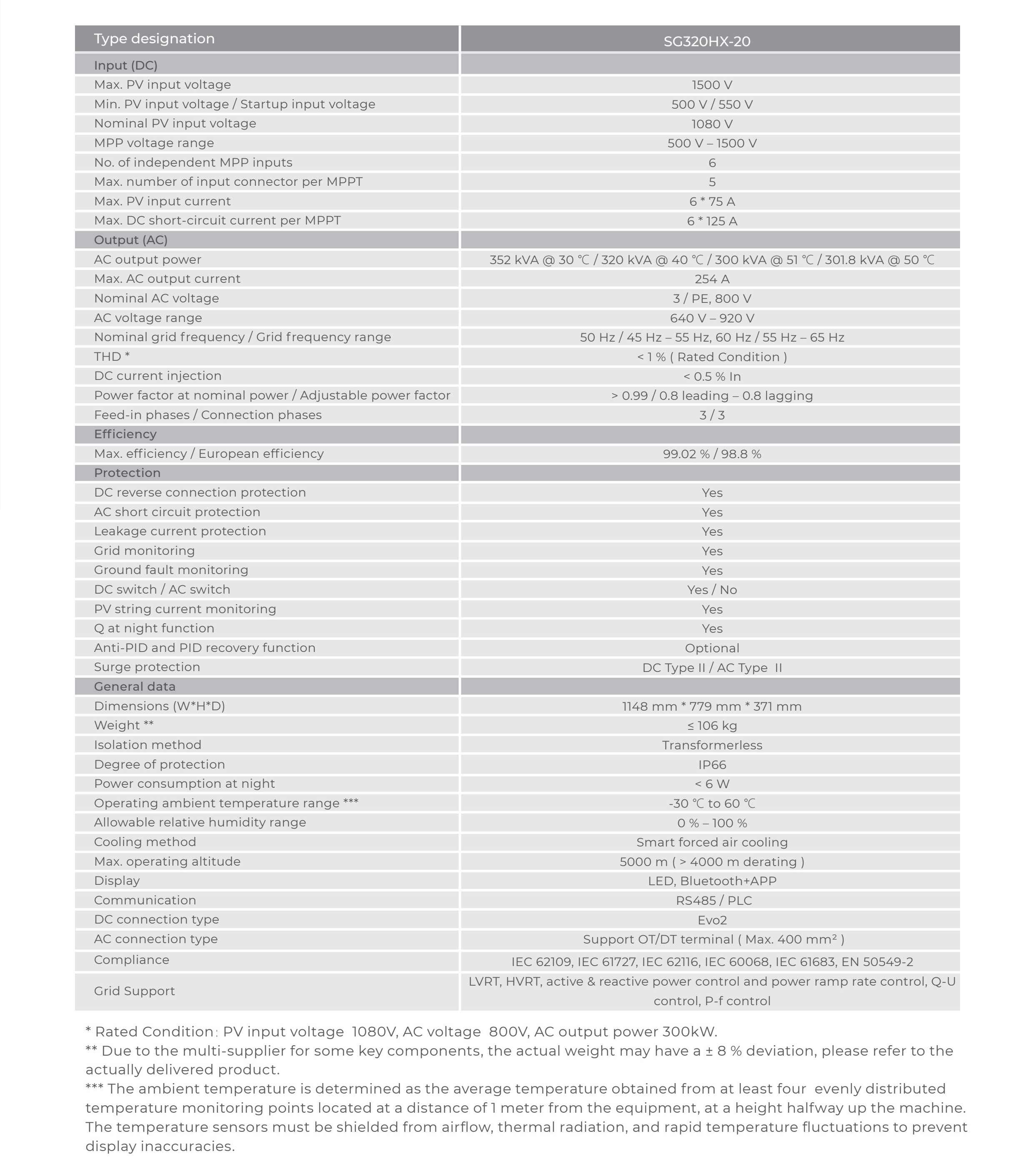

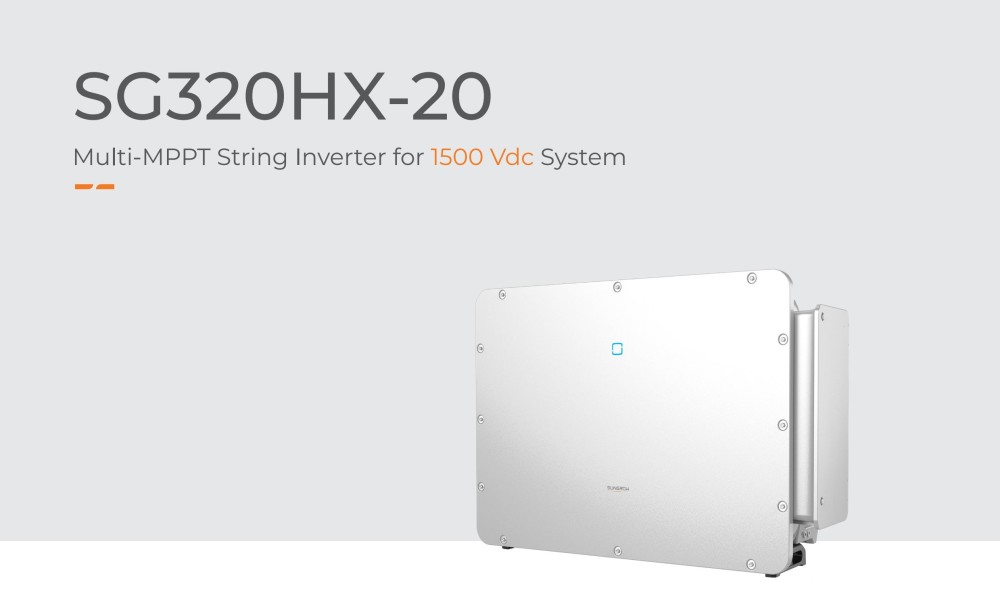

Model: SG320HX-20
Up to 6 MPPTs with max. efficiency 99%
75A per MPPT, adapt to different PV module
Max 30 inputs,adapt to different DC/AC ratios
Q at night function, save investment
Power line communication (PLC)
Smart IV Curve diagnosis,active O&M
SCR≥1.1 stable operation in extremely weak grid
Fastest Reactive power response time 30ms
Compliant with global grid code
Intelligent DC switch, automatically cut off the fault
24h real-time AC and DC insulation monitoring
IP66 protection, C5 design, adapt to all kinds of harsh environment
Smart-cooled and dedusted fan with IP68 protection, low temperature rise, long lifecycle
