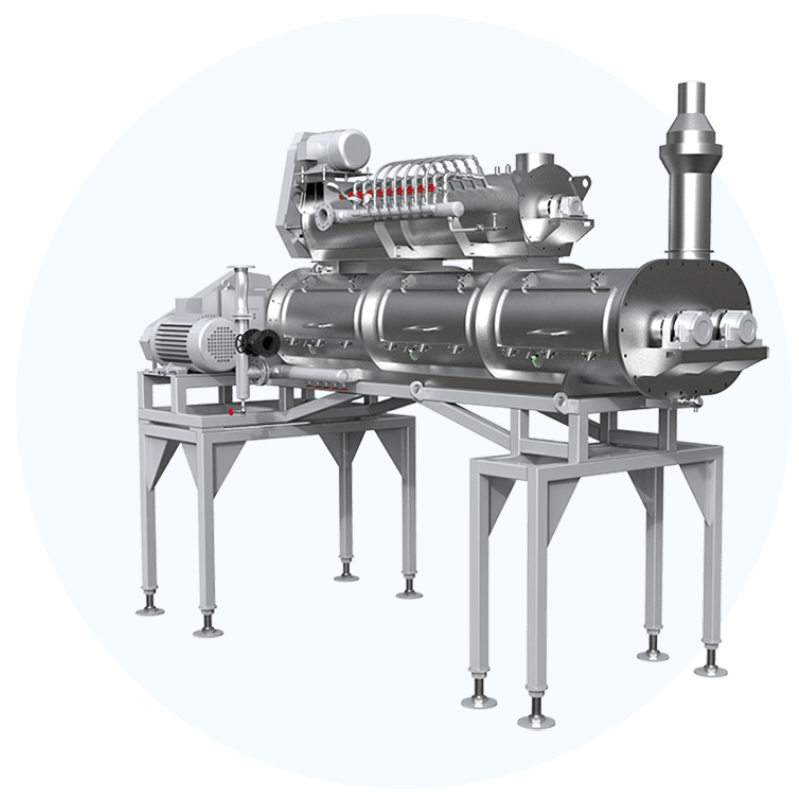

FAMSUN’s self-developed SPTZ_D series triple-shaft equal diameter conditioner is used for pre-treatment before extrusion in the aqua feed and pet food industries. This series of triple-shaft equal diameter conditioners has a wide adaptability to raw materials, and the process parameters can be flexibly adjusted. It can perform high-temperature disinfection, starch gelatinization, protein structuring, and other adjustments on various compound feeds, making full preparations for the expansion process.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

01 The conditioner has a longer conditioning time and better conditioning result.

Compared to the SPTZ triple-shaft conditioner, the volume and conditioning time of the SPTZ_D triple-shaft equal-diameter conditioner increase by 20%.

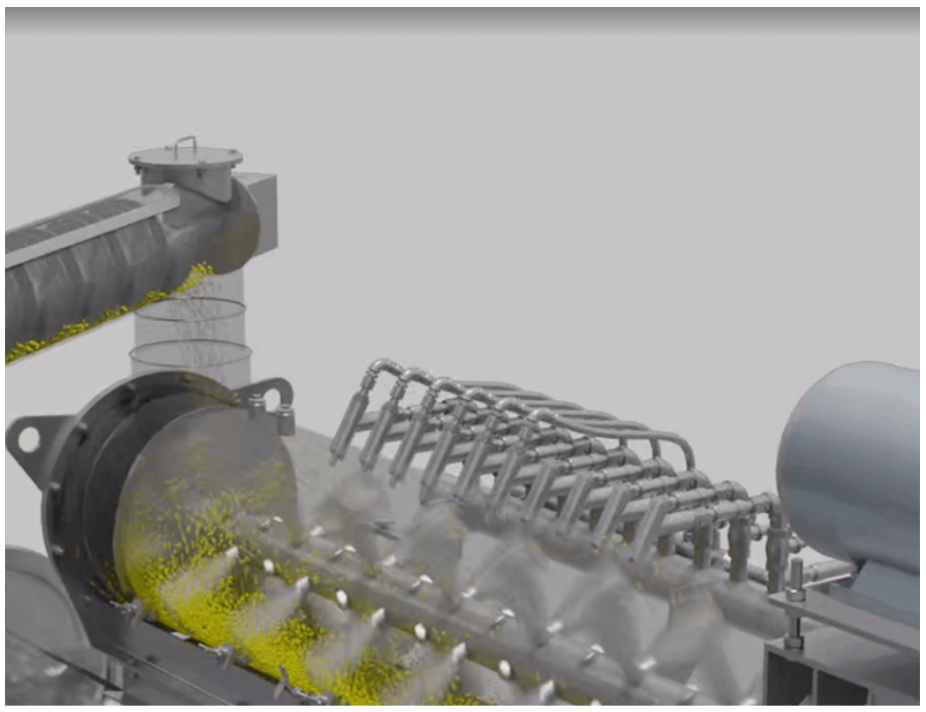

02 Water and Steam Addition Structure

The upper conditioner is used for adding water and steam and mixing them quickly, while the lower conditioner has a high filling rate to extend the conditioning time; the water and steam addition adopts a multi-point addition and a co-injection structure to ensure thorough mixing of water, steam, and materials.

03 Fully upgraded seals to eliminate leakage

Professional design of shaft end seal, multi-layer sealing, good sealing effect, long sealing life. The door seal is made of embedded high-temperature resistant foamed silicone, which has a long service life and is easy to install.

04 Simple Operation, Easy Maintenance

The opening length of the door body accounts for about 70% of the total length of the conditioner, which is convenient for cleaning, and the door locking mechanism has an automatic function; the shaft end seal is designed with a large replacement space, making it easy to replace the seal after aging.

05 The lower conditioner is equipped with a variable frequency motor to meet various working conditions.

The lower conditioner uses a variable frequency motor, which can adjust the rotational speed online according to different production capacities and formula requirements, thereby adjusting the filling rate and optimizing the conditioning effect; the SEW gear-reducer is optional.
