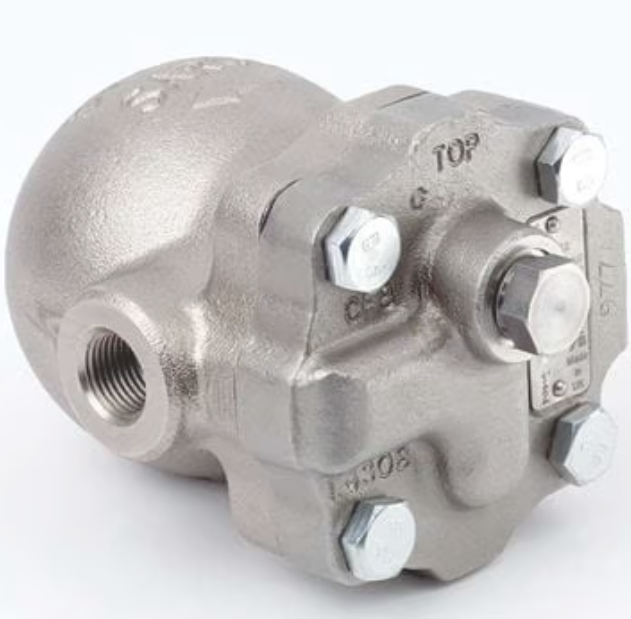

Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
1/1
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Spirax Sarco UFT32 Sealed Stainless Steel Ball Float Steam Trap
  • Description
Description
The UFT32 is an austenitic stainless steel maintenance free sealed ball float steam trap with an integral automatic air venting facility. It is designed for differential steam pressures up to 32 bar (464 psi). When installed with a suitable pipeline connector the UFT32 can easily and simply be removed without breaking into the pipeline, thus speeding up trap replacement with minimal system downtime. Pipeline connectors are available with screwed, socket weld and flanged end connections.
Capsule
The BP99/32 capsule which is used in the UFT32 is suitable for use on 150 °C (302 °F) superheat @ 0 bar g (0 psi g) and 50 °C (122 °F) superheat @ 32 bar g (464 psi g).
Standards
The body to cover welded joint complies with ASME Section IX and BS/EN 288.
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU.
Certification
This product is available with certification to EN 10204 3.1.
Note: All certification/inspection requirements must be stated at the time of order placement
