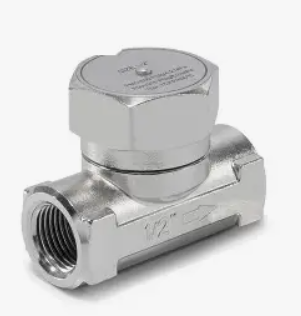

Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Thermodynamic steam traps combine reliability, simplicity and efficiency of operation.

With just one moving part - a hardened stainless steel disc - they give a blast discharge with clean, tight shut-off.

Able to withstand superheat, water hammer, corrosive condensate, freezing and vibration.

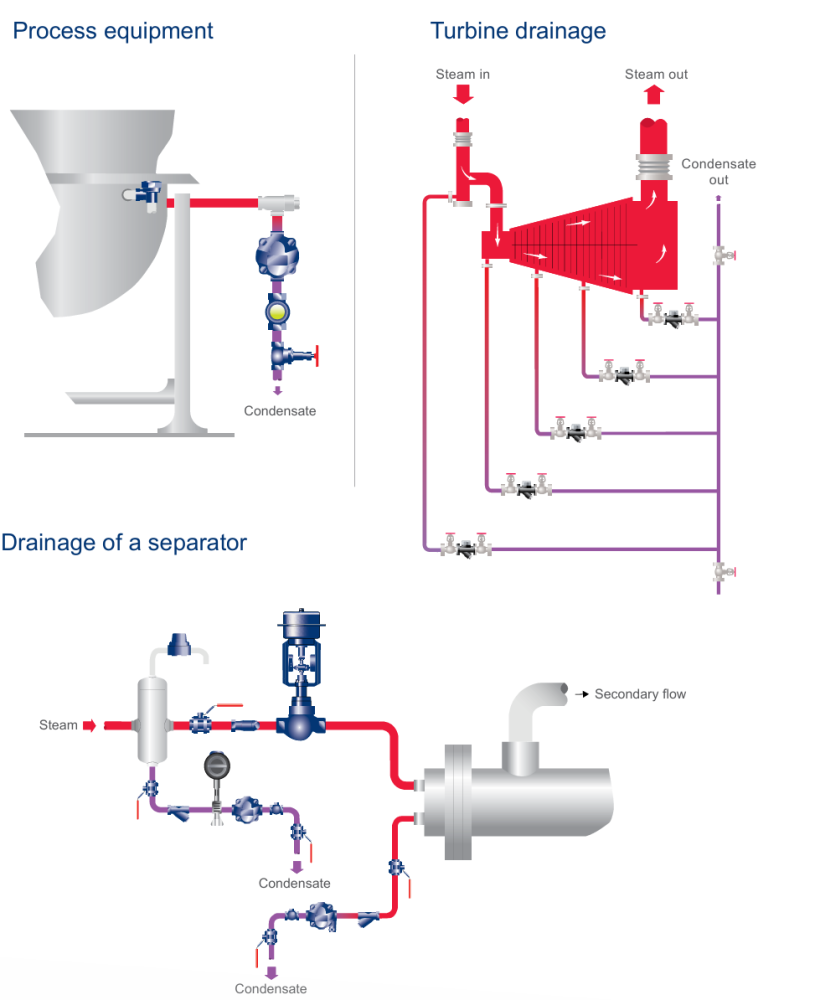

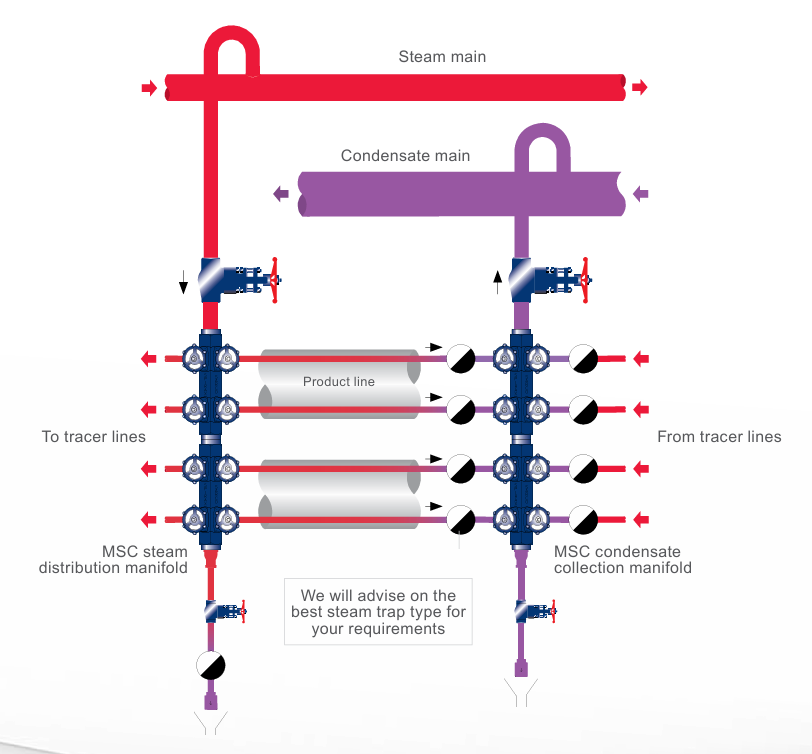

The TD trap is the first choice for removal of condensate from steam distribution systems.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
1/1
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Spirax Sarco TD62LM & TD62M Thermodynamic Steam Traps
  • Description
Description

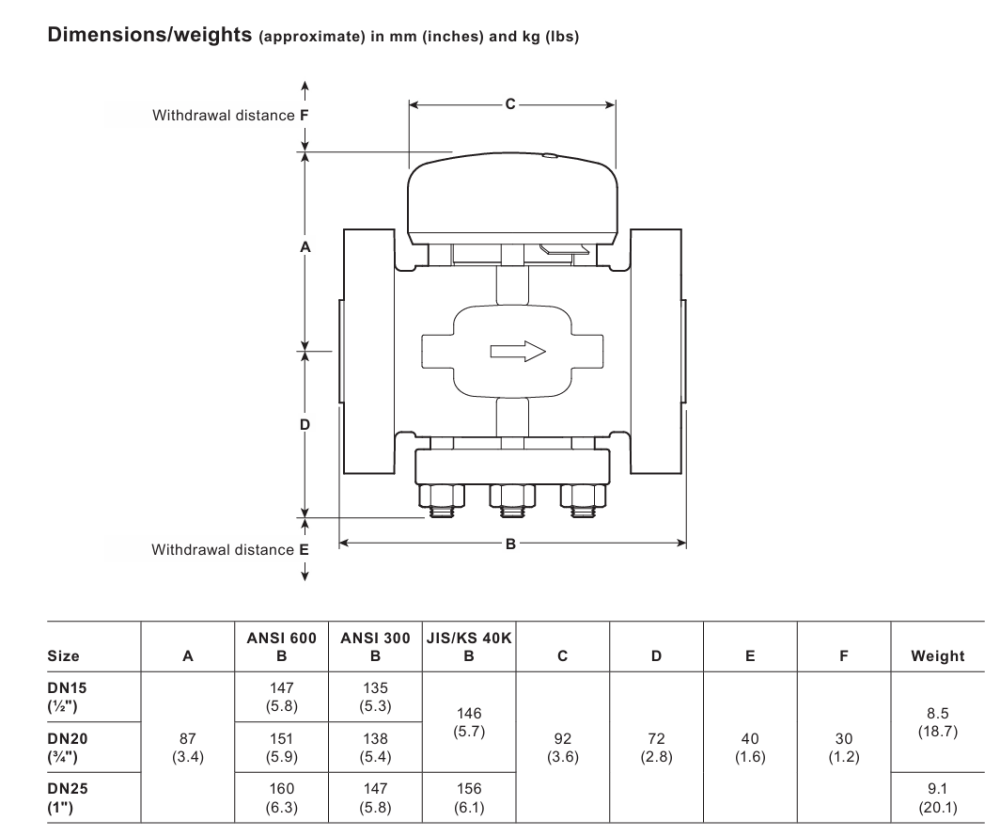

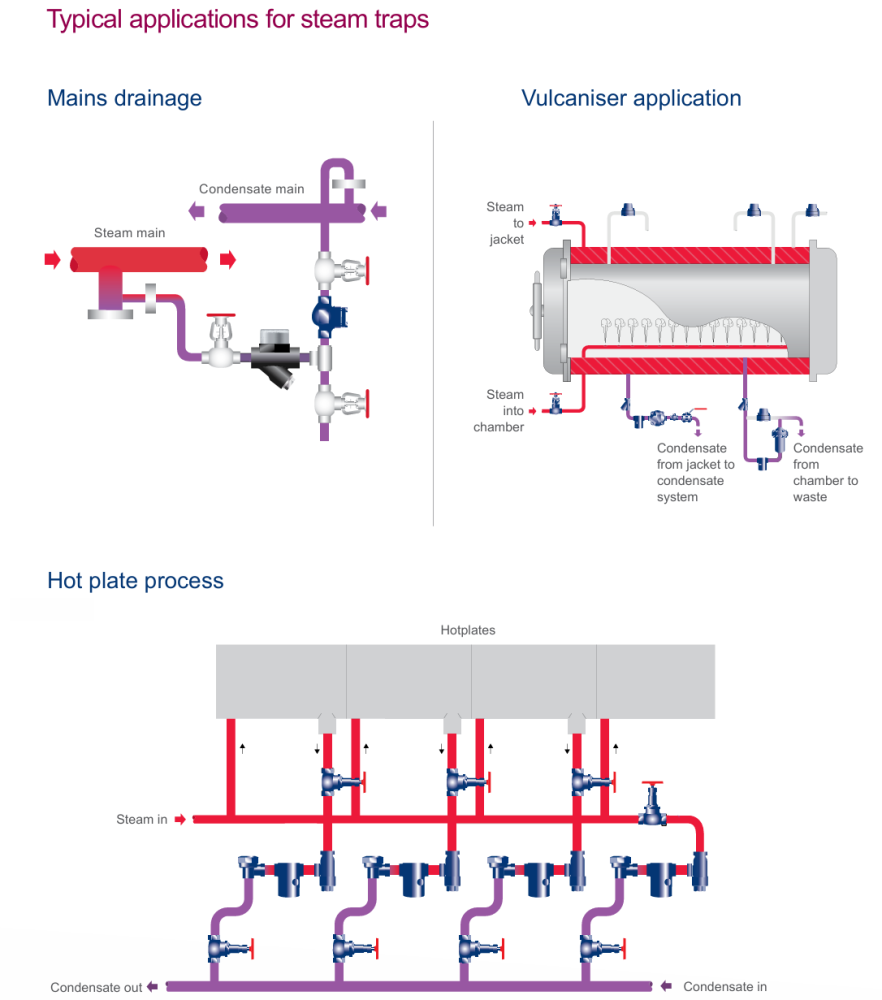

The TD62LM and TD62M are maintainable high pressure thermodynamic steam traps with integral strainer and a replaceable seat to ease maintenance. They have been specifically designed for mains drainage applications up to 62 bar g (899 psi g).
The TD62LM is specifically designed for relatively small condensate loads on superheat and mains drainage applications. An insulating cover is fitted as standard to prevent the trap being unduly influenced by excessive heat loss when subjected to low ambient temperatures, wind or rain.The body and cover meet typical industry standards including Charpy impact testing of 27J @-30 °C (-22 °F). available with certification to EN 10204 3.1
Standards
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU.
Certification
This product is available with certification to EN 10204 3.1.
Note: All certification/inspection requirements must be stated at  the time of order placement
