Spirax Sarco Steam Separator

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Separators - designed to gather small water droplets from steam and separate them from the pipeflow.

Reduce wet steam. Maintain heat transfer efficiency.
Reduce erosion and corrosion in your steam system.

Reduce pipework and heating surface scaling.

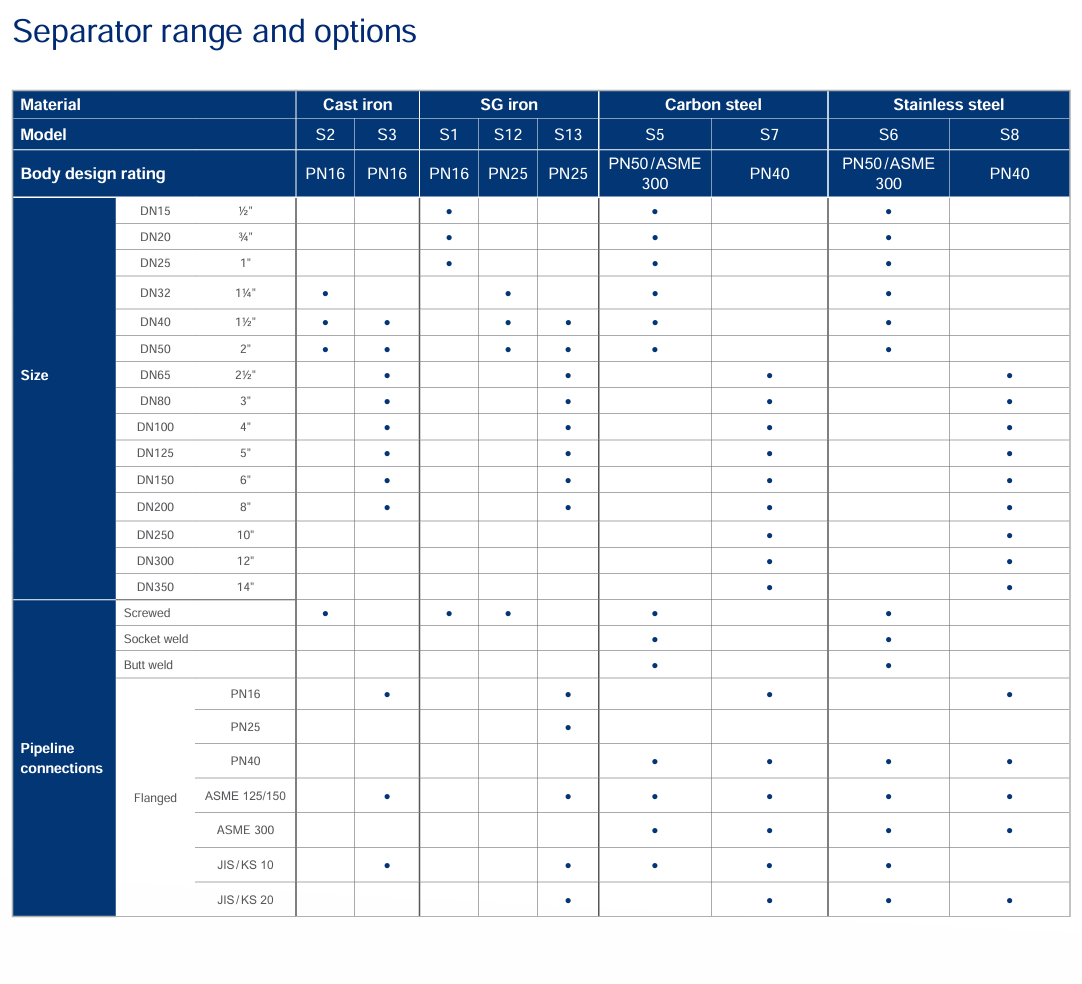

Product model:
S1 SG Iron Separator
S2 Cast Iron Separator (Screwed)
S5 Carbon Steel Separator
S6 Austenitic Stainless Steel Separator
S7 Carbon Steel Separator DN65 to DN350
S8 Stainless Steel Separator DN65 to DN350
S12 SG Iron Separator (Screwed)
S13 SG Iron Separator (Flanged)

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
1/1
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Spirax Sarco Steam Separator
  • Description

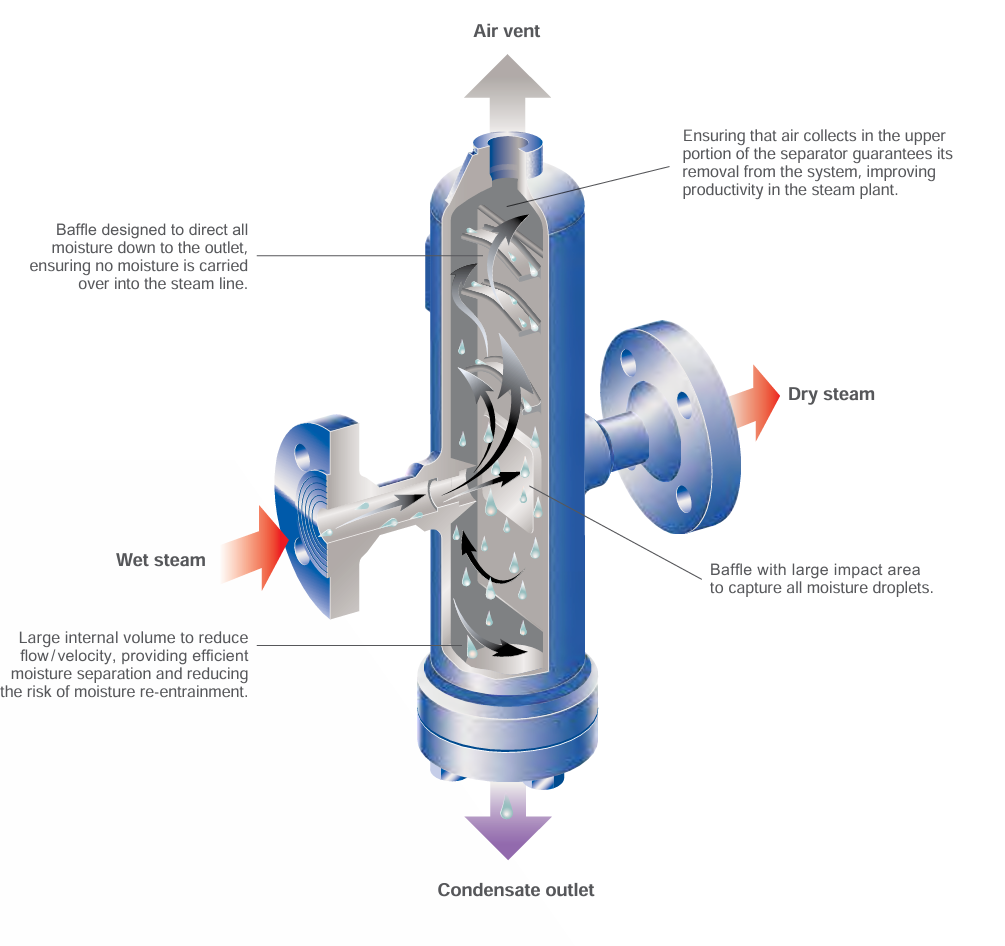

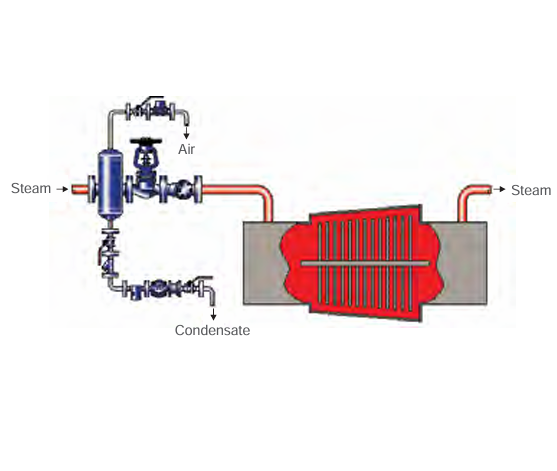

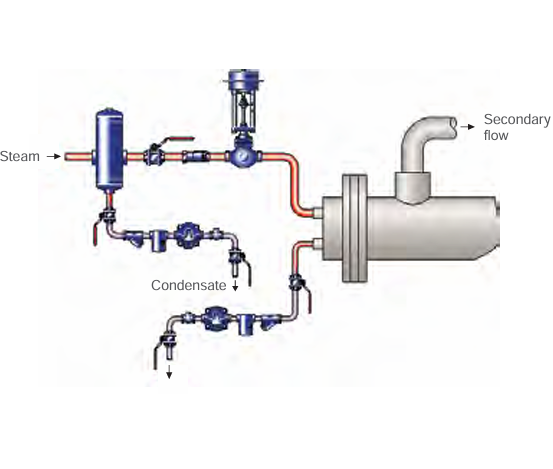

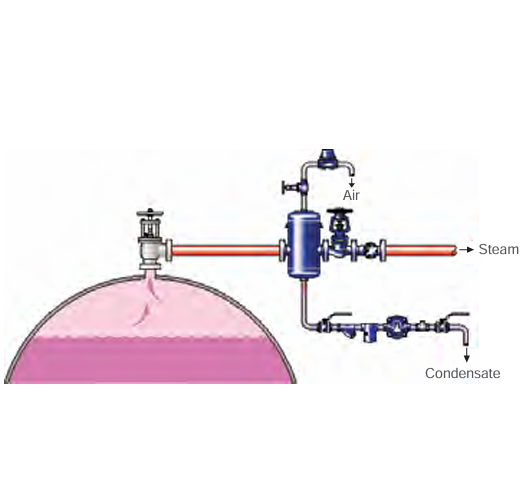

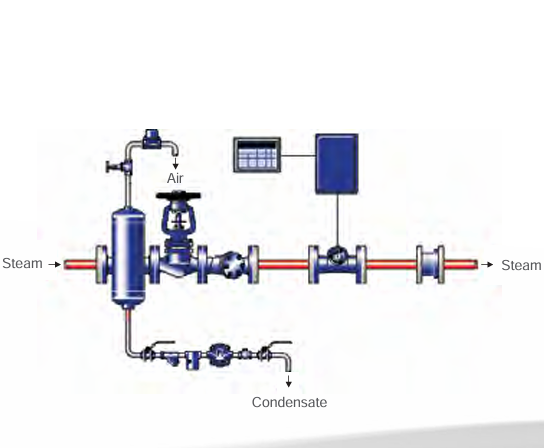

Wet steam can cause a number of problems in the system including a reduction in heat transfer efficiency, increased erosion and possible corrosion. Entrained water flowing through control valves, flowmeters and rotating or reciprocating equipment significantly affects performance and can eventually lead to an inefficient system and plant downtime.The primary purpose of a separator is to remove water which may be suspended in the steam supply. Installing separators at key points around the system helps keep the steam dry. This allows vital equipment to operate as productively as possible and helps to maintain optimum conditions throughout the entire system.

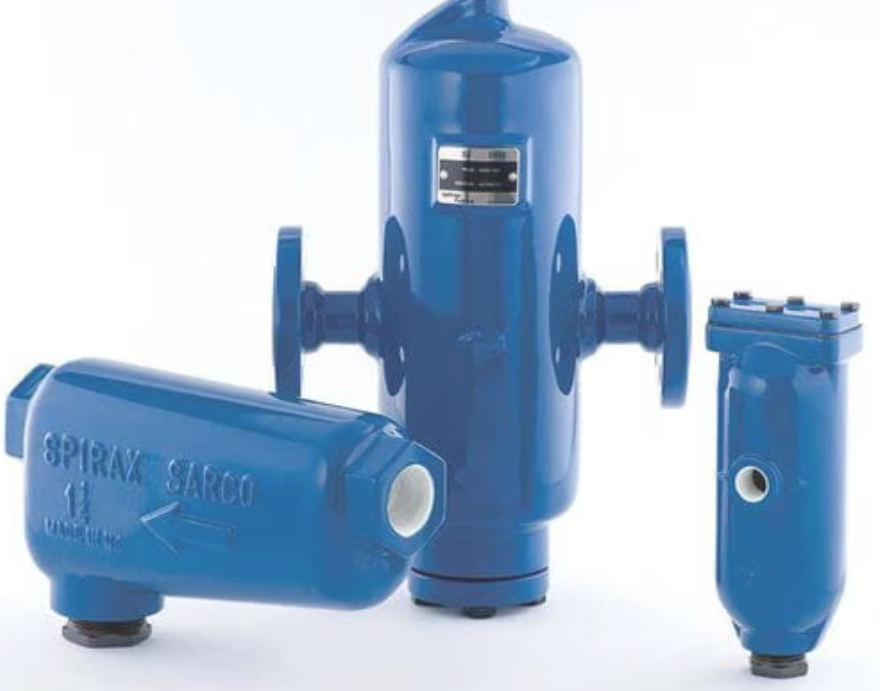

With a wide range of materials and sizes, we have a separator for almost any application or process. Their large internal volumes provide excellent moisture separation and very low pressure drop. Our separators are available in two types:
 1) Available in cast iron and SG iron, the S1, S2, S3, S12 and S13 separators are offered for general purpose applications. Designed for simplicity, they are relatively compact yet efficient for non-critical applications.
 2) The S5, S6, S7 and S8 series are high efficiency separators specifically designed to maintain separation over a wide range of pipeline velocities and pressures. These separators are available in both carbon steel and austenitic stainless steel for specialist process systems. They also offer an additional benefit of efficient air removal, which further improves productivity in the steam plant.
