Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

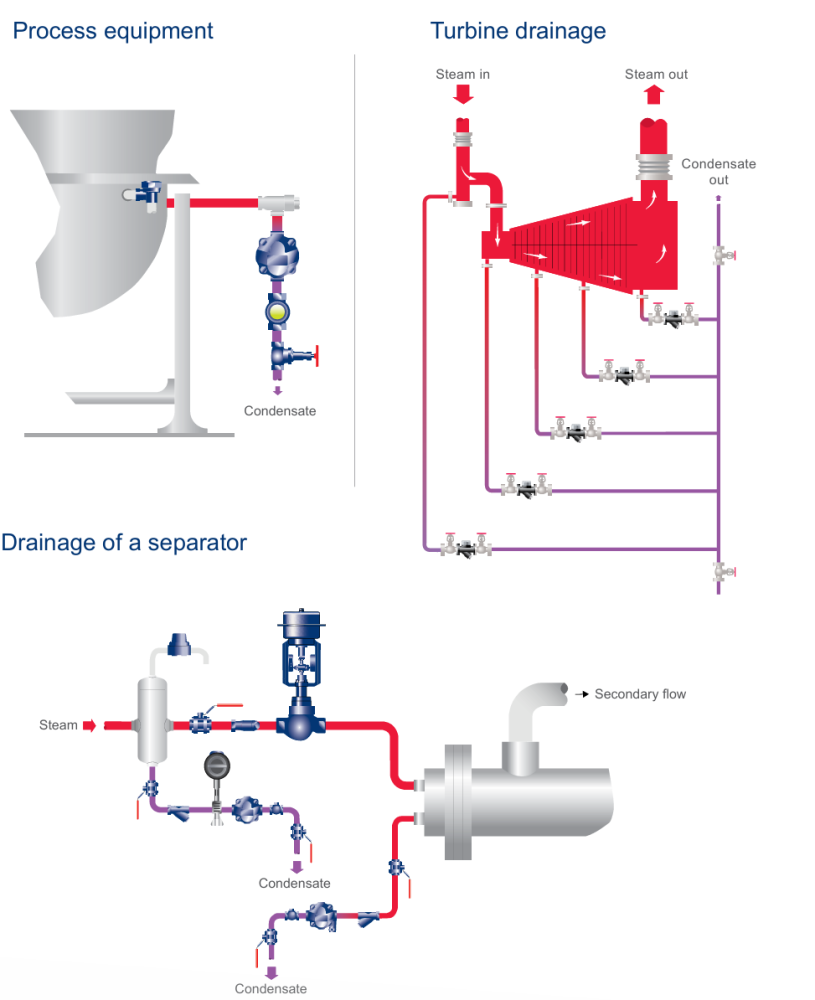

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
1/1
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Spirax Sarco IFT57 SG Iron Ball Float Steam Trap with Integral Spiratec Sensor and Flanged Connections
  • Description
Description

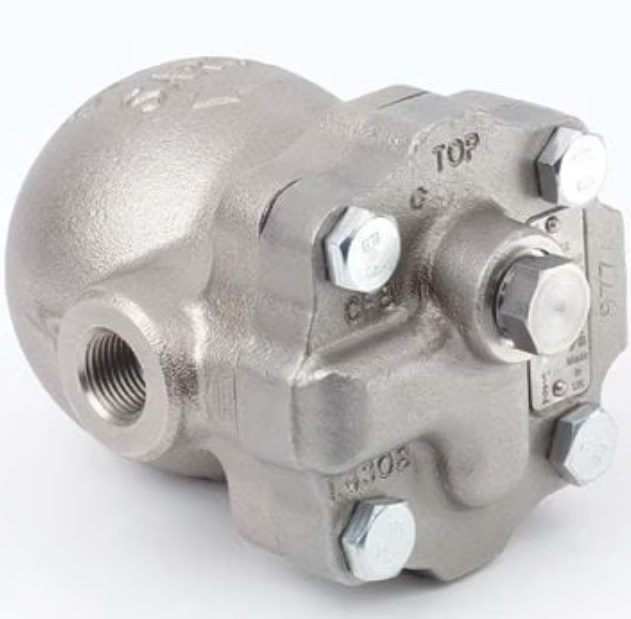

The IFT57 is an SG iron ball float steam trap having stainless steel working internals, an integral Spiratec sensor (SSI) for steam leakage detection and built-in automatic air venting facility for the prompt removal of large condensate loads from steam systems. The trap is supplied with integrally flanged connections and can be maintained without disturbing the pipework. Vertical flanged connections, designated IFT57V are available. Flow direction for the horizontal trap is from right to left only when facing the body. For vertically orientated traps the flow is downwards only. The body and cover are produced by TÜV approved foundries
Standards
This product fully complies with the requirements of the EU Pressure Equipment Directive/UK Pressure Equipment (Safety) Regulations and carries the  mark when so required.
Certification
This product is available with certification to EN 10204 3.1.
Note: All certification/inspection requirements must be  stated at the time of order placement
