Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

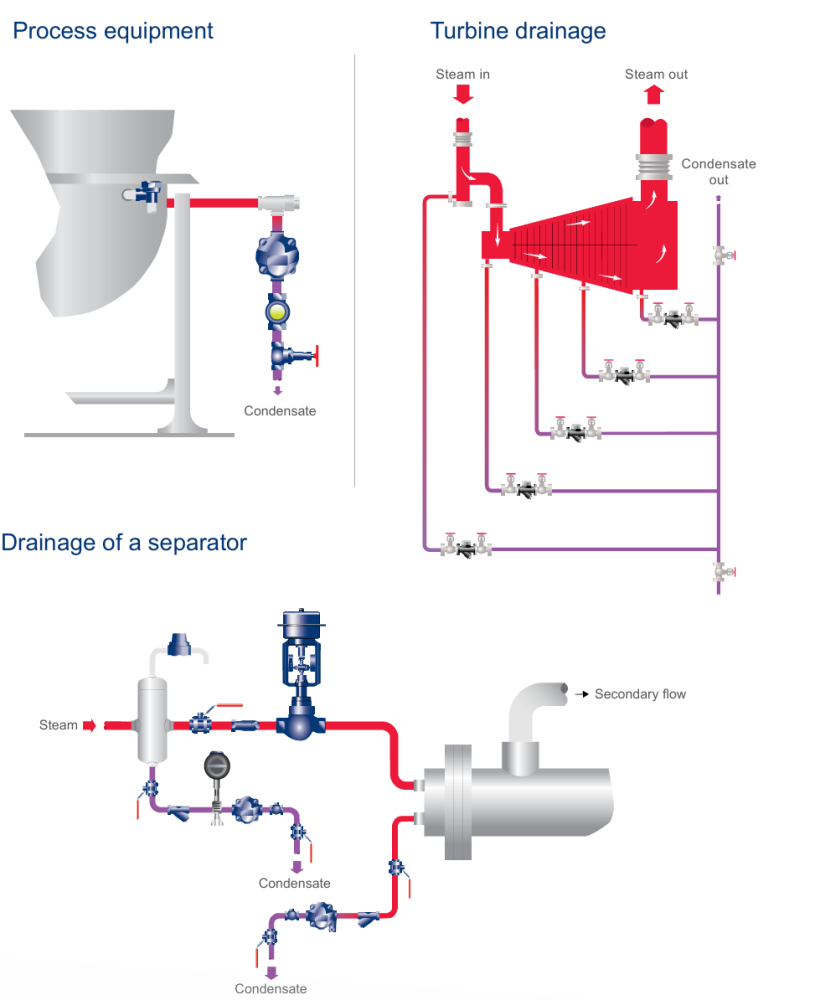

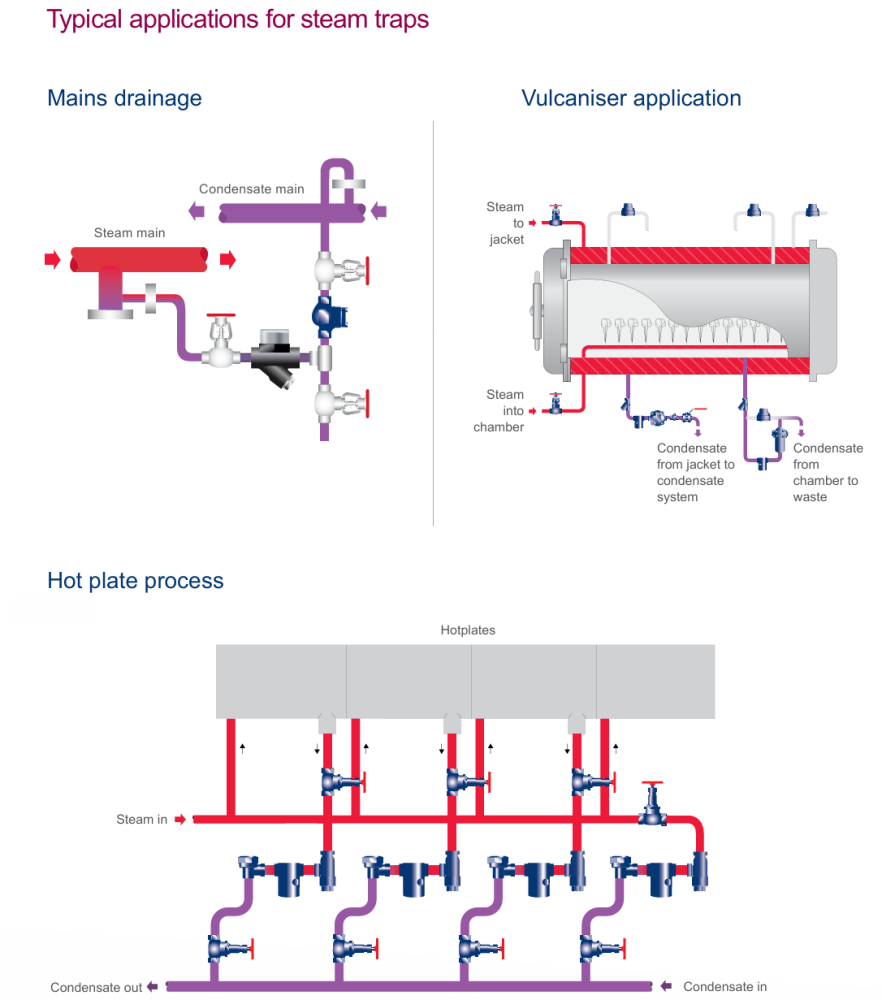

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
1/1
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Spirax Sarco IFT14 Ball Float Steam Trap with Integral Spiratec Sensor
  • Description
Description

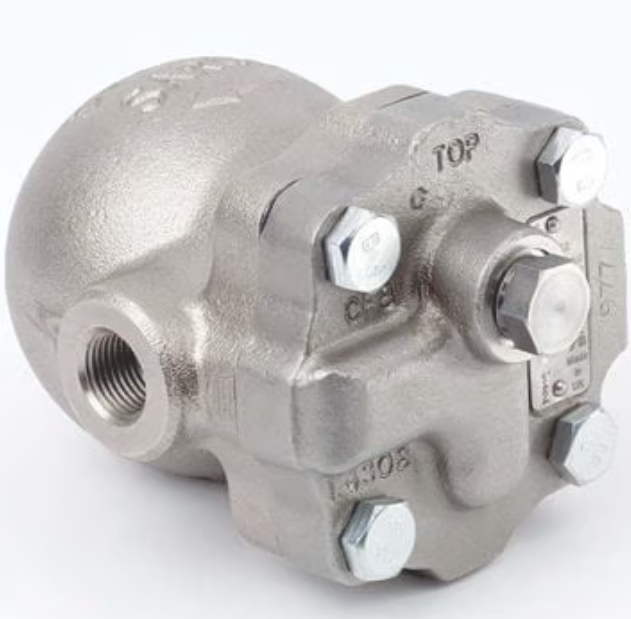

The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R – L), and can be simply integrated into all existing Spiratec monitoring systems.
Capsule
The BP99/32 capsule which is used in the FT14 is suitable for use on 150 °C (270 °F) superheat @ 0 bar g (0 psi g) and 50 °C (91 °F)superheat @ 32 bar g (464 psi g).
Standards
The product fully complies with the requirements of the Pressure Equipment Directive (PED).
Certification
This product is available with a manufacturers' Typical Test Report.
Note: All certification/inspection requirements must be stated at the time of order placement.
