Spirax Sarco FTGS14 Ball Float Steam Trap

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

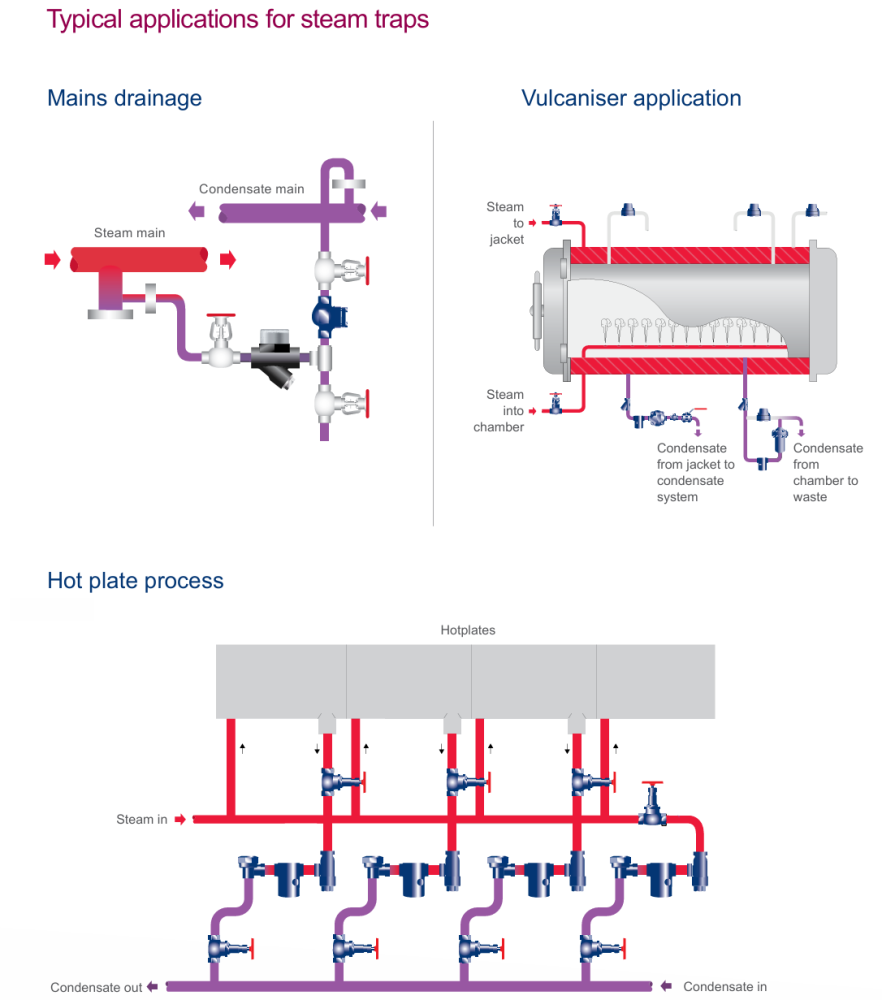

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
1/1
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Spirax Sarco FTGS14 Ball Float Steam Trap
  • Description
Description

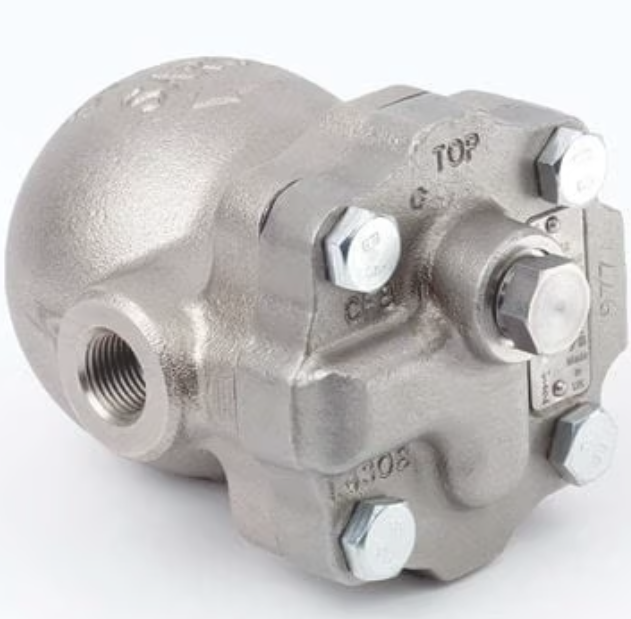

The FTGS14 ball float steam trap has an austenitic stainless steel body, stainless steel working internals and integral automatic air venting facility. The SG iron cover is electroless nickel-plated offering increased resistance to erosion. The FTGS14 can be maintained without disturbing the pipework.
Capsule
The BP99/32 capsule which is used in the FTGS14 is suitable for use on 150 °C superheat @ 0 bar g and 50 °C superheat @ 32 bar g.
Standards
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU.
Certification
This product is available with a manufacturers Typical Test Report.
Note: All certification/inspection requirements must be stated at the time of order placement.
