Spirax Sarco FT47 SG Iron Ball Float Steam Traps

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

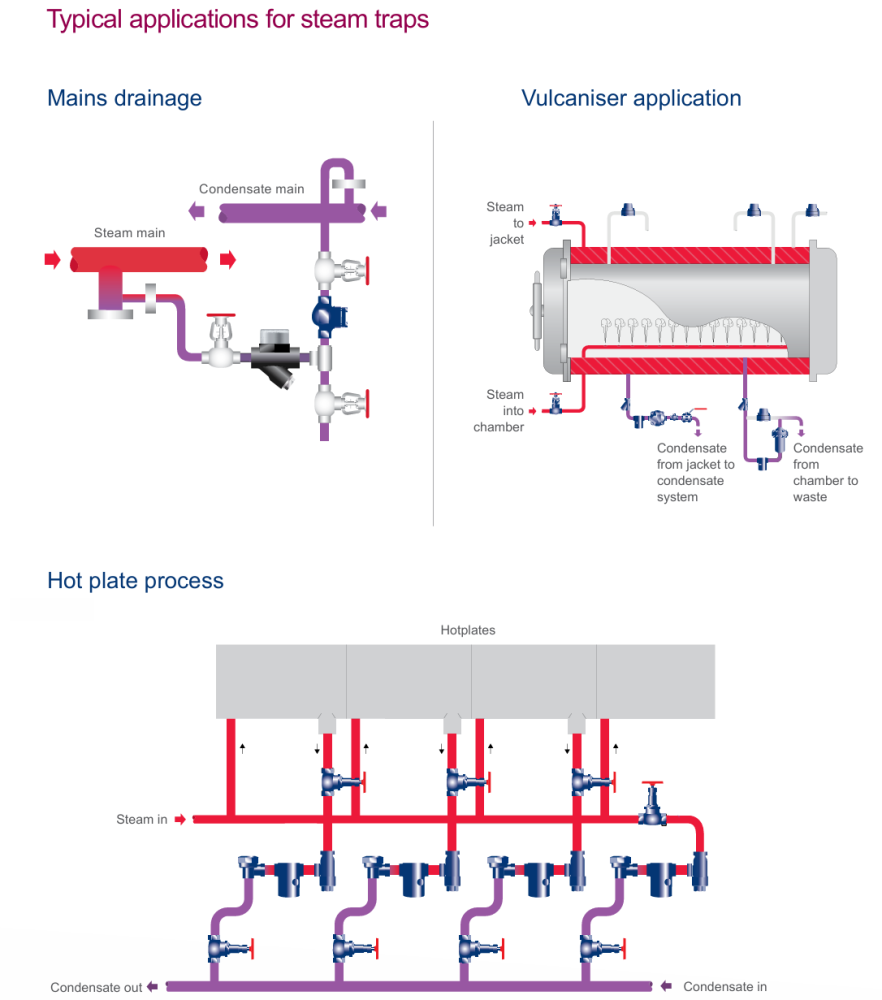

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
1/1
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Spirax Sarco FT47 SG Iron Ball Float Steam Traps
  • Description
Description

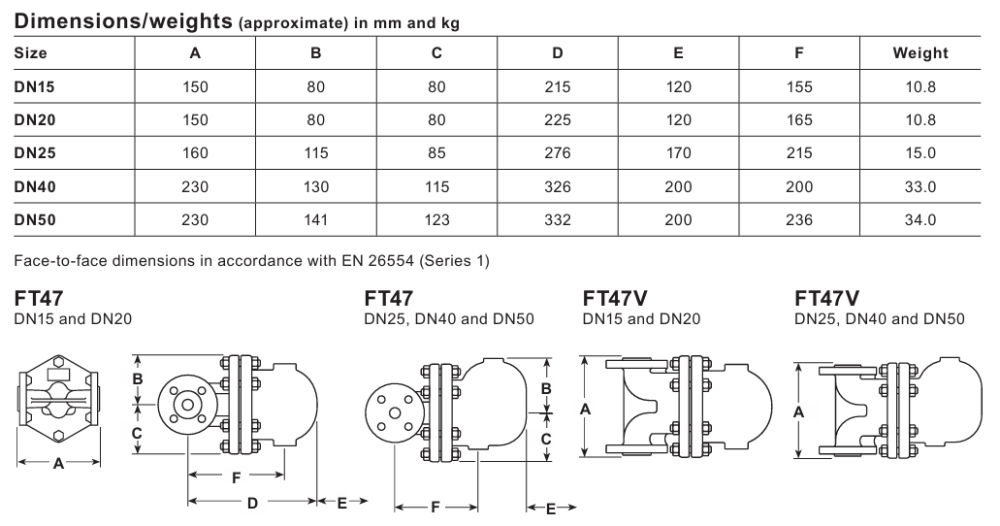

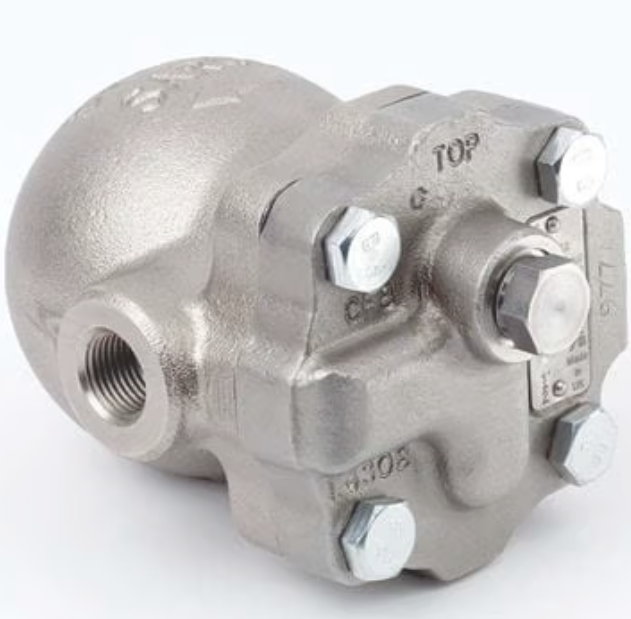

The FT47 is an SG iron ball float steam trap with integral automatic air venting facility. It is available with horizontal flanged connections as well as vertical flanged connections, designated FT47V. As an option in the horizontal version up to 21 bar g, a manually adjustable needle valve can be added for use as a steam lock release designated FT47-C. If required, the cover can be drilled and tapped 3/8" BSP or NPT for the purpose of fitting a drain cock. For the horizontal DN50 only, body and cover castings are produced by a TÜV approved foundry.
Standards
This product fully complies with the requirements of the Pressure Equipment Directive (PED) and carries the mark when so required.
Certification
This product is available with a manufacturers' Typical Test Report. As an available option certification to EN 10204 3.1 can be supplied.
Note: All certification/inspection requirements must be specified at the time of order placement
