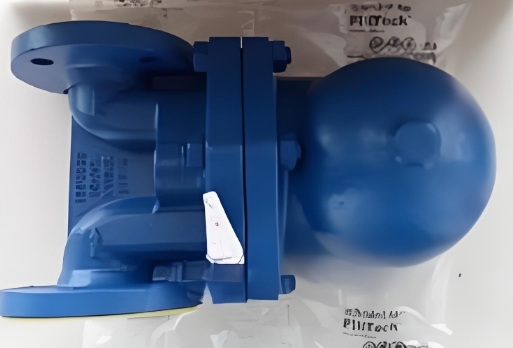

Spirax Sarco FT12 Cast Iron Float/Orifice Trap

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

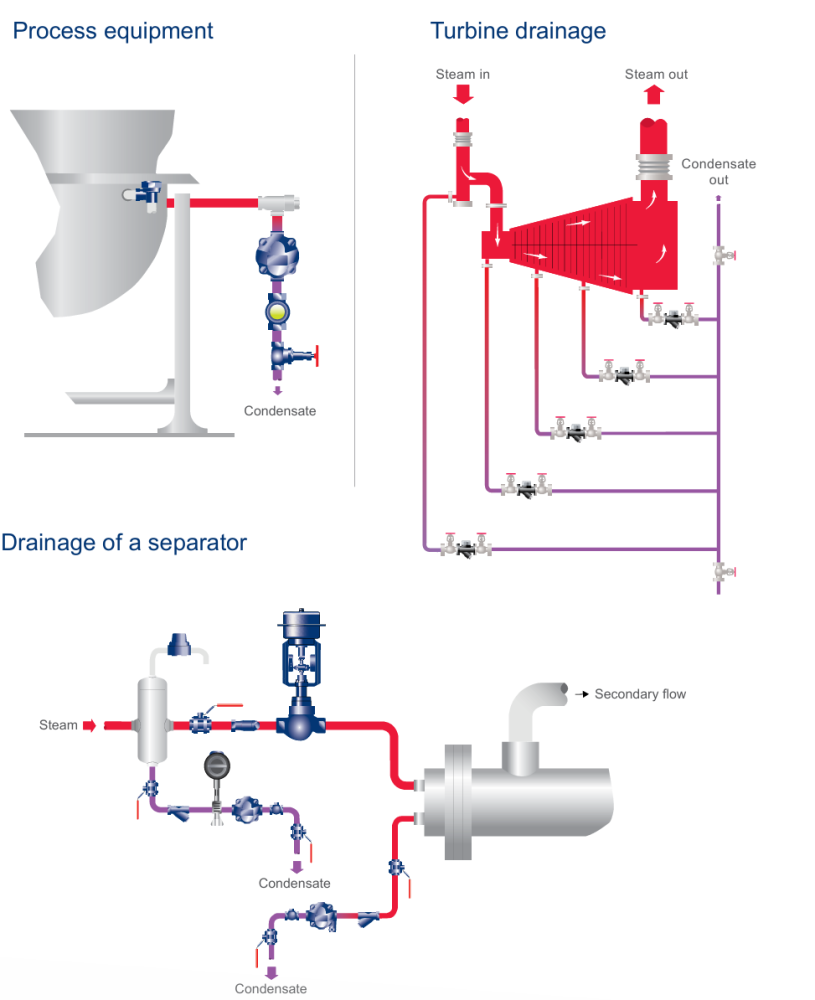

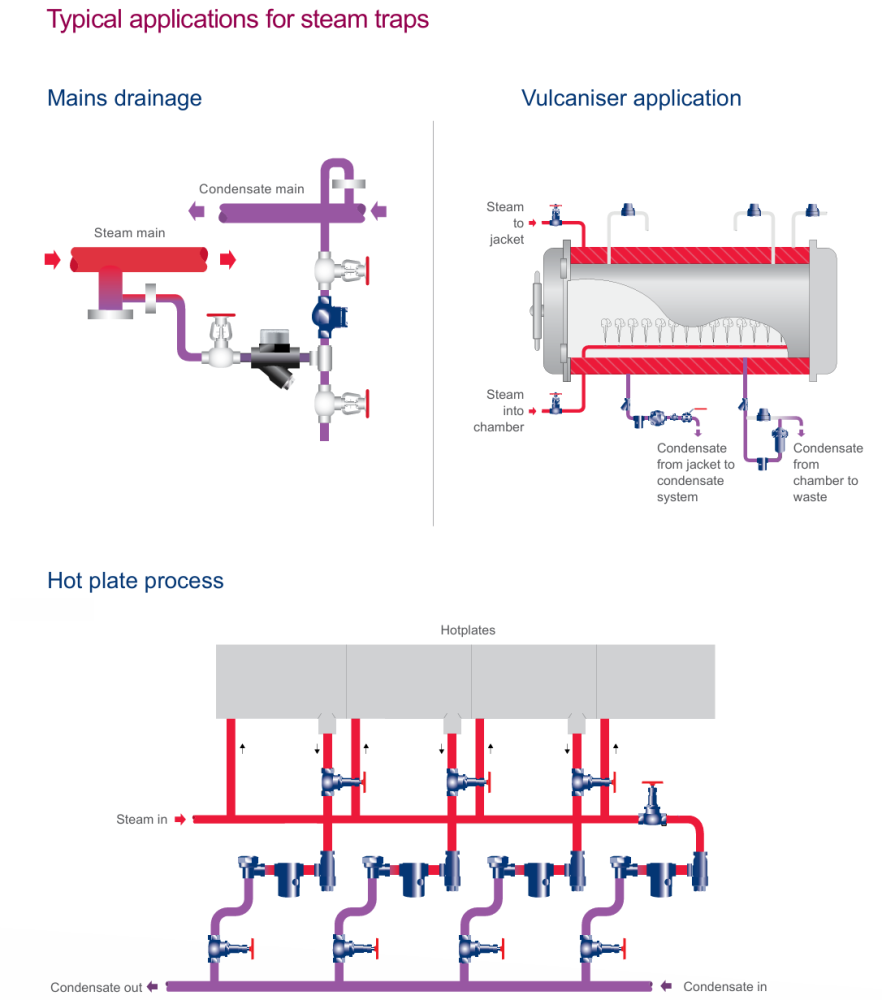

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
1/1
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Spirax Sarco FT12 Cast Iron Float/Orifice Trap
  • Description
Description

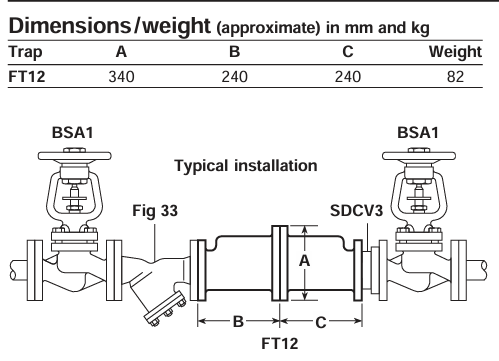

The FT12 is a unique steam trap which combines a large fixed orificeto handle very high condensate loads up to differential pressures of 4 bar. An integral float trap mechanism provides a variable capacity in addition to the orifce. Minimum flowrates are required to avoid blowthrough and these depend on the orifice selected A, B, C or D.The FT12 is manufactured in cast iron with DN150 (6") flanged connections. It is designed specifically for the sugar industry, which has inherently low pressure, high load steam systems.
Standards
This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC.
Certification
This product is available with certification to EN 10204 2.2.
Note: All certification/inspection requirements must be stated at the time of order placement.
