The Spirax SafeBlocTM is a double isolation solution, with a unique space-saving design, offering reduced installation time and fewer leak paths.

Faster and easier to install than a traditional double block and bleed assembly, the Spirax SafeblocTM has an innovative design which incorporates two bellows sealed isolation valves and a bleed port in one compact assembly.

Easy to use and commission, the Spirax SafeblocTM can be installed without pipework modifications, into the space left by an existing single isolation valve.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
1/1
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Spirax Sarco DBB3 Double Block and Bleed Bellows Sealed Stop Valve
  • Description
Description

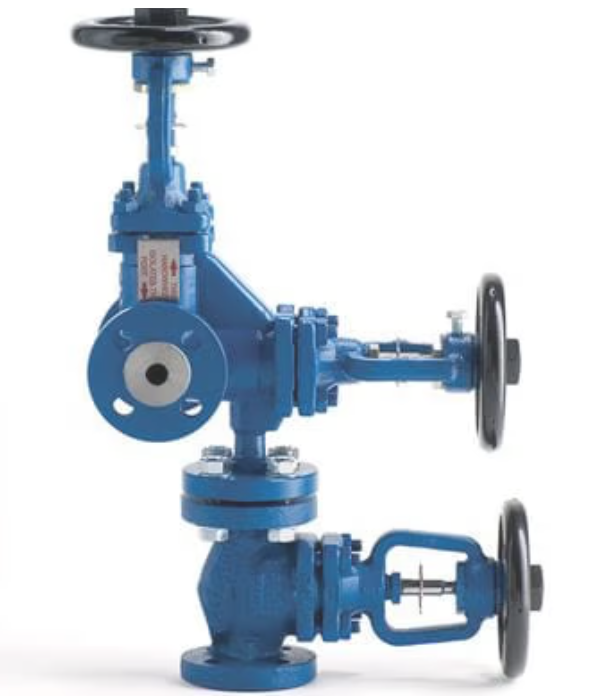

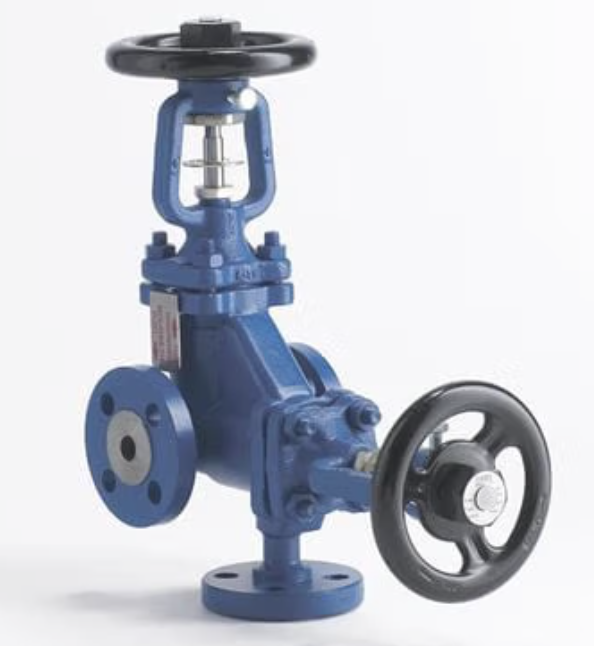

The Spirax SafeBlocTM is a double block and bleed bellows sealed stop valve, accommodated within the same face-to-face dimension of a single valve. It has been designed for use as an in-line double isolation valve on steam, gas, liquid, condensate and water systems.
Available types

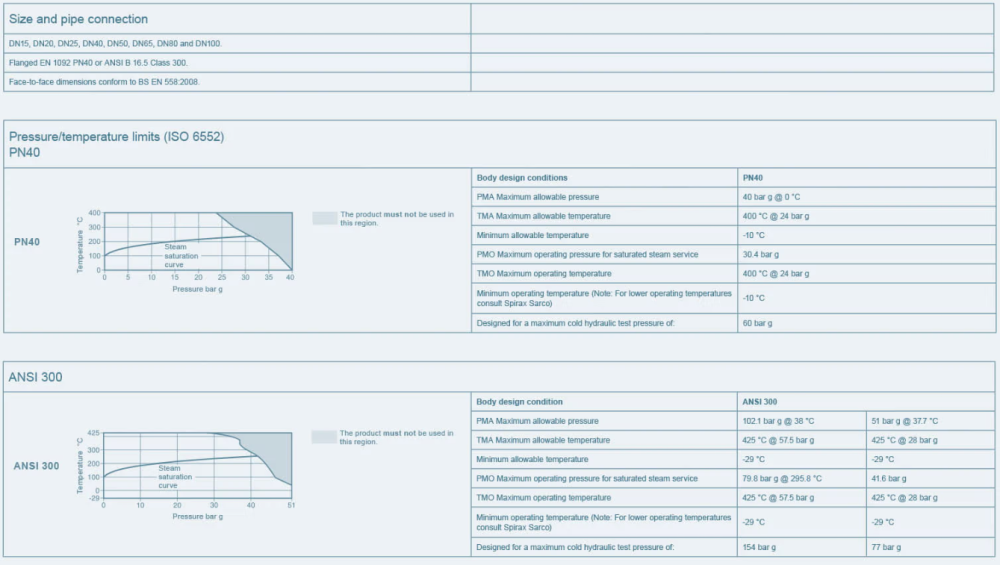

DBB3 steel body and bonnet with PN40 or ANSI 300 connections.
Seat leakage
Disc to seat shut-off conforms to EN 12266-1 Rate A leakage.
Bleed valve options
 A bleed valve connection is provided to depressurise the downstream when the upstream valve is isolated. This can be supplied with either a DN15 flanged, ½" screwed BSP or NPT or ½" socket weld connection and must be stated at the time of order placement.
Standards
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU and carries the when so required.
Certification
This product is available with certification to EN 10204 3.1.
Note: All certification/inspection requirements must be stated at the time of order placement.
