The enclosure is sealed with ABS potting compound, achieving an IP65 protection rating.

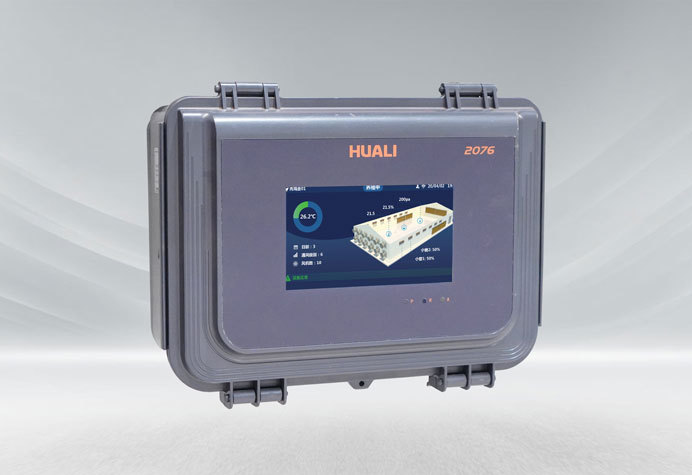

Equipped with a 7-inch touchscreen for intuitive display, simple operation, and smooth control.
Offers maximum user configuration flexibility, allowing customizable output logic settings to meet diverse requirements of livestock and poultry farming environments.
Supports up to 10-point age-based temperature profiles: target temperature curve, minimum stage curve, maximum stage curve, low-temperature alarm curve, and high-temperature alarm curve.
Accommodates up to 7 high-precision temperature sensors to ensure accurate environmental control.
Compatible with humidity, static pressure, ammonia (NH₃), CO₂, and other sensors, with built-in alarm functionality.
Provides up to 6 channels of 0–10V analog outputs, supporting variable-speed fans, fan dampers, and similar equipment.
Features up to 20 relay outputs for controlling constant-speed fans, water pumps, misting systems, heaters, and other devices.
Supports alarms for sensor failure, high/low temperature, high/low humidity, and high/low pressure conditions.
Enables local backup and restoration of device parameters.
Supports USB flash drive for parameter import/export, firmware updates, and device replacement assistance.
