Spirax Sarco FTC80 Cast Steel Ball Float Steam Trap

SKU:
0.0 (0)
0 Sold
$0.00 $0.00

Extremely versatile traps. Work efficiently on both light and heavy condensate loads.

Compact in size. Discharge capacity is high and continuous, ensuring maximum heat transfer.

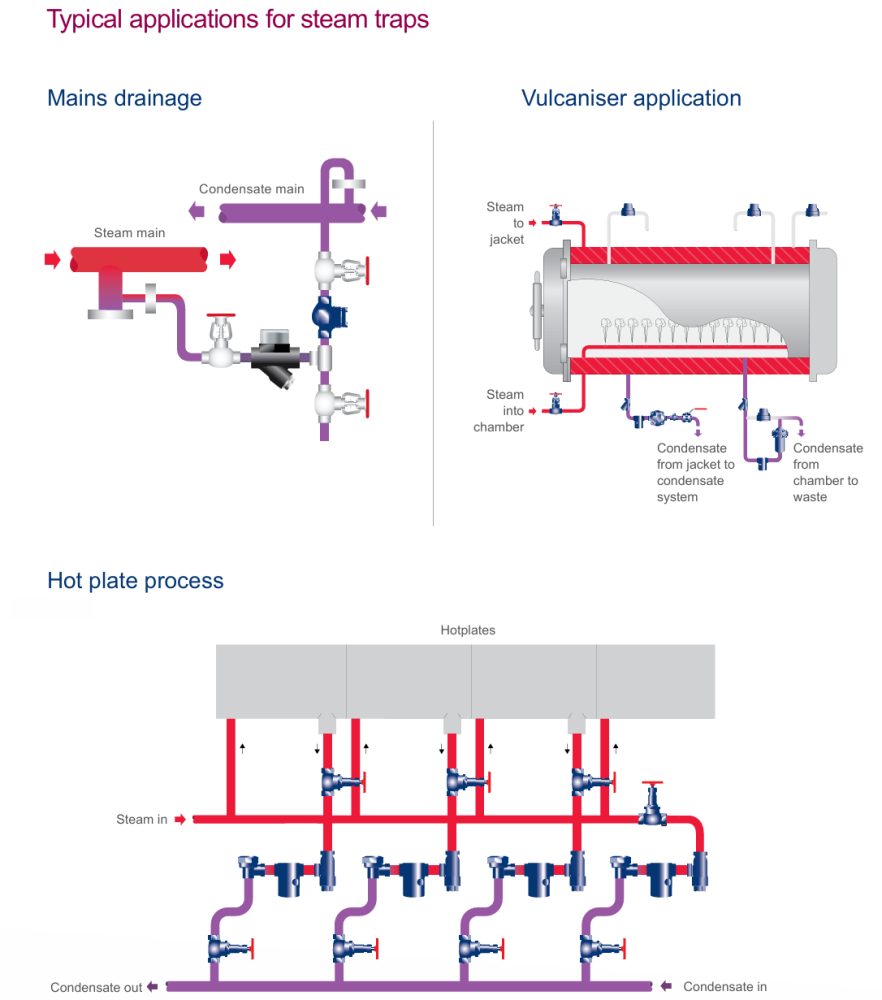

Ball float steam traps are the best choice for draining plant with automatic temperature control.

An integral air vent is fitted as standard and a steam lock release is an option.

Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
1/1
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • FTC80 Cast Steel  Ball Float Steam Trap
  • Description
 Description
 As standard, the FTC80 ball float steam trap is supplied with a right to left (R-L) flow configuration having horizontal connections and has provision for adding an air venting option; Please note that the unit is supplied with a ¾" socket weld connection in the cover with a plug screwed into the fitting. It has been designed for floor mounting and is suitable for most high-pressure process and drainage applications. Its simple robust ball float mechanism ensures excellent resistance to waterhammer. All internals are easily accessible for in-line maintenance and a drain port allows full body drainage. It has a large maintainable strainer screen that extends service intervals and is located in an accessible flanged chamber
Standard
This product fully complies with the requirements of the European Pressure Equipment Directive 2014/68/EU.
Certification
This product is available with certification to EN 10204 3.1 for the body, cover, fasteners, screen flange and BDV2 air vent.
Note: All certification / inspection requirements must be stated at the time of order placement.
