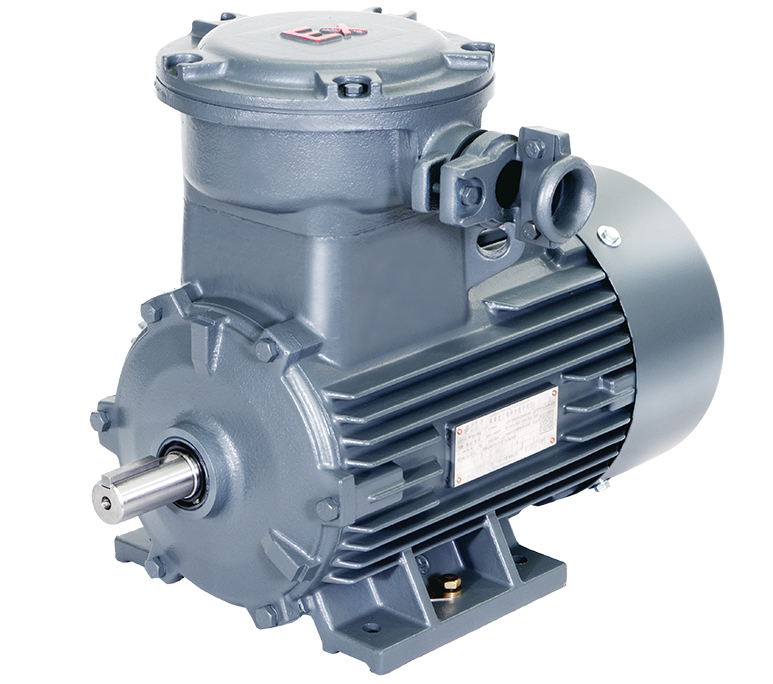

Name: 1MT0003 IE4 series Flameproof Low Voltage Three-phase Asynchronous Motor
Brand: HOOMALL CO., LTD
Price: 20000 USD
Availability: OutOfStock

0.0 (0)

0 Sold

$20,000.00 Login to see price

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The 1MT0003 series high-efficiency explosion-proof fully enclosed, self fan cooled three-phase asynchronous motor is a brand new product. This series of explosion-proof motors fully complies with design standards such as IEC 60079-0:2017/IEC 60079-1:2017 and GB/T 3836.1-2021/GB/T 3836.2-2021, with an explosion-proof rating of Ex db IIB T4 Gb and explosion-proof performance certified by CQST. Its efficiency meets the requirements of IEC 60034-30 IE3 high efficiency level (50Hz) and complies with GB 18613-2020 energy efficiency level three. It has the characteristics of excellent performance, safe and reliable use, flexible installation, easy maintenance, low vibration, and low noise.

The 1MT0003 series high-efficiency explosion-proof electric motor can be widely used in hazardous fields and places such as petroleum, chemical, and oil and gas. The design of the motor ensures that the explosion inside the motor will not affect the external environment. The energy generated by the explosion inside dissipates in a space called the "explosion-proof chamber", making it insufficient to ignite the explosive environment outside.

■ Rated power: 0.55~315 kW	■ Explosion proof mark: Ex db IIB T4 Gb
■ Machine base number: 80~355	■ Protection level: IP55
■ Voltage and frequency: 380V 50Hz 380/660V 50Hz, other commonly used voltages are optional	■ Insulation system: Class F
■ Standard color: RAL7011	■ Oil filling device: standard for motors with frame sizes 280~355, optional for frame sizes 160~250
■ Cooling method: IC411, IC416 optional	■ Environmental temperature:- 20 º C~40 º C standard design
